Miscellaneous steel detailing

At Nexarch, we specialize in providing high-quality Miscellaneous Steel Detailing Services that bring accuracy, functionality, and reliability to your construction projects. Miscellaneous steel may not always be the centerpiece of a structure, but it plays a crucial role in ensuring safety, usability, and seamless integration within architectural and structural designs.

Our team of experienced detailers uses advanced software and industry best practices to deliver precise drawings, fabrication details, and installation instructions for a wide range of miscellaneous steel components. These include staircases, handrails, ladders, platforms, guardrails, canopies, trusses, bollards, embeds, and other custom steel elements. Each detail is carefully developed to meet project specifications, code requirements, and client expectations.

Our Miscellaneous Steel Detailing Services Include:

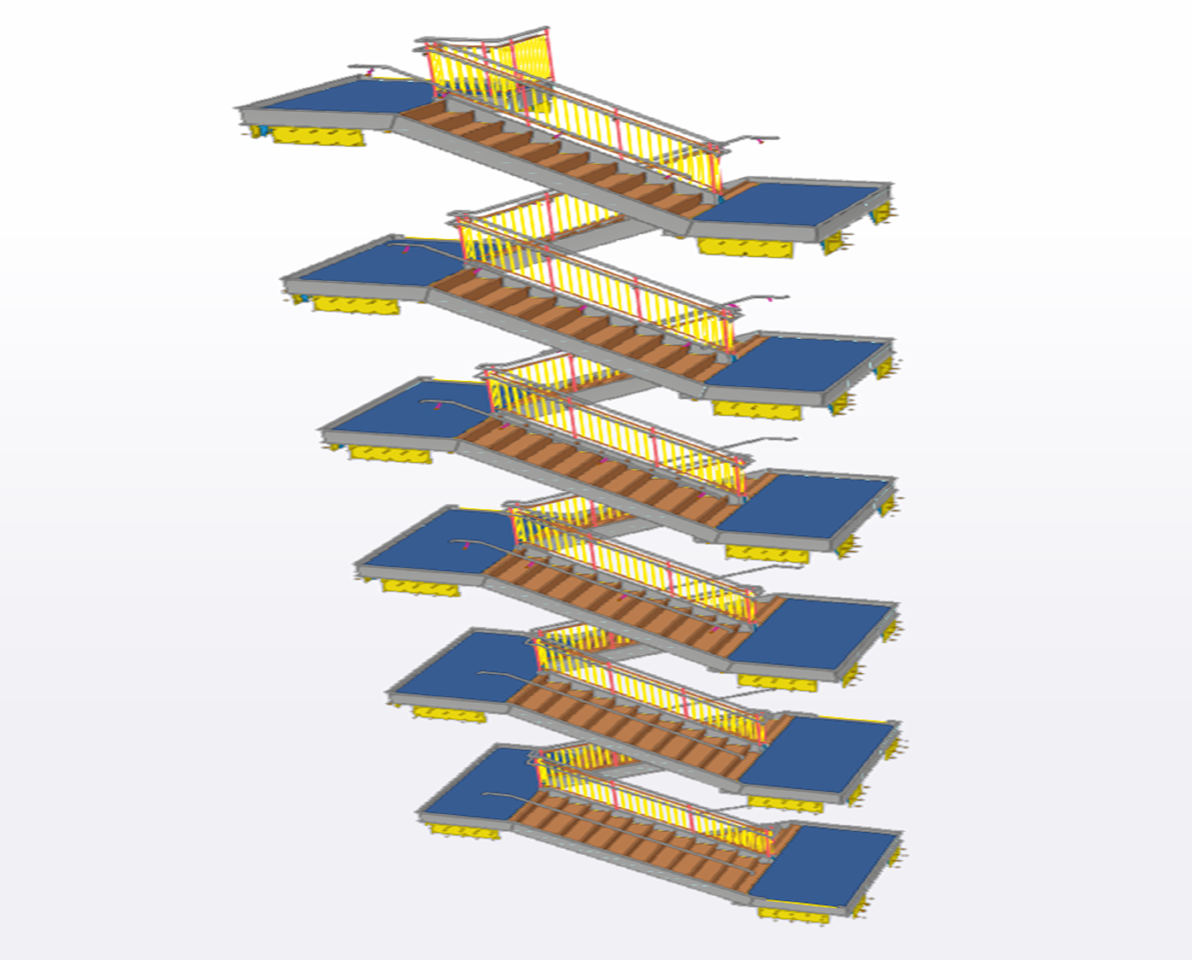

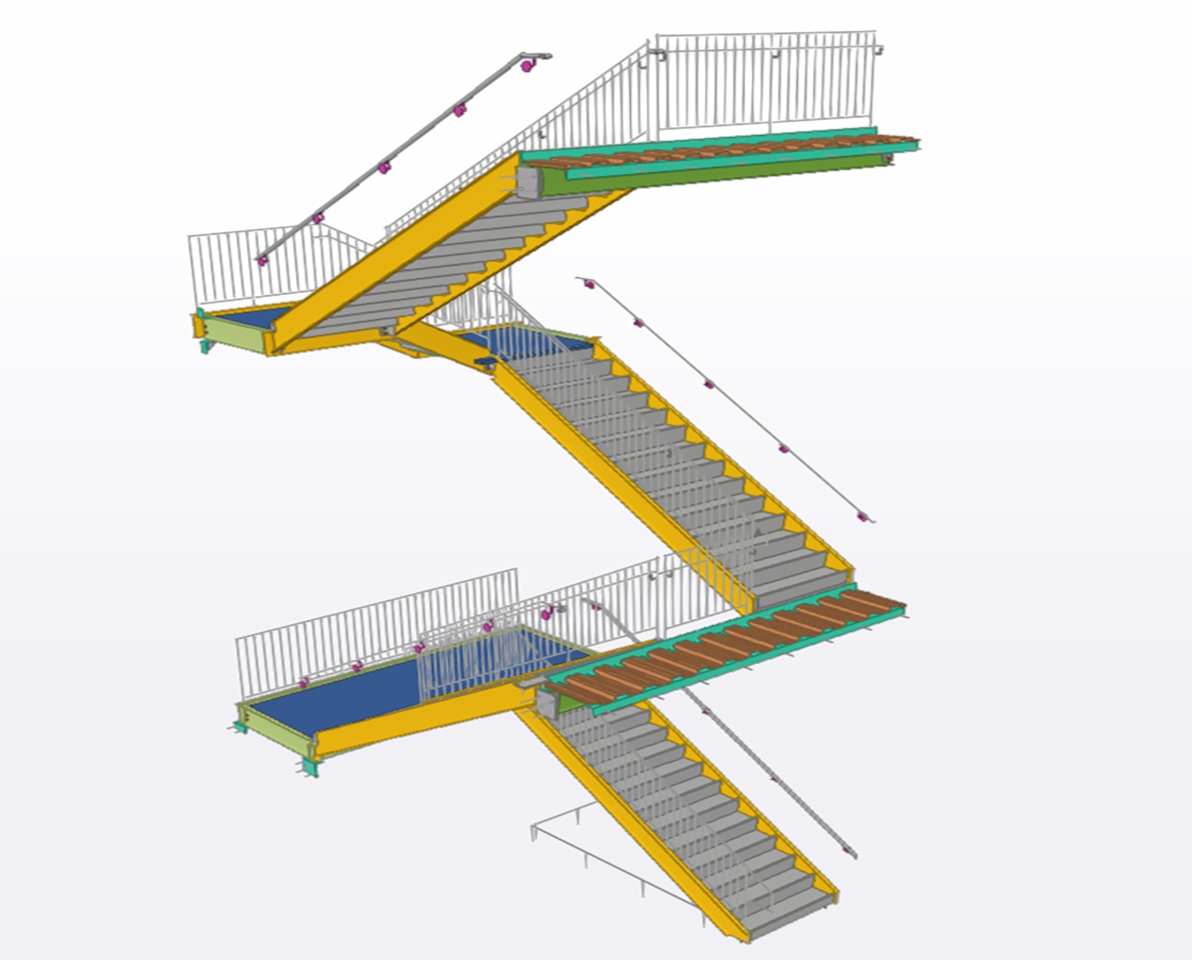

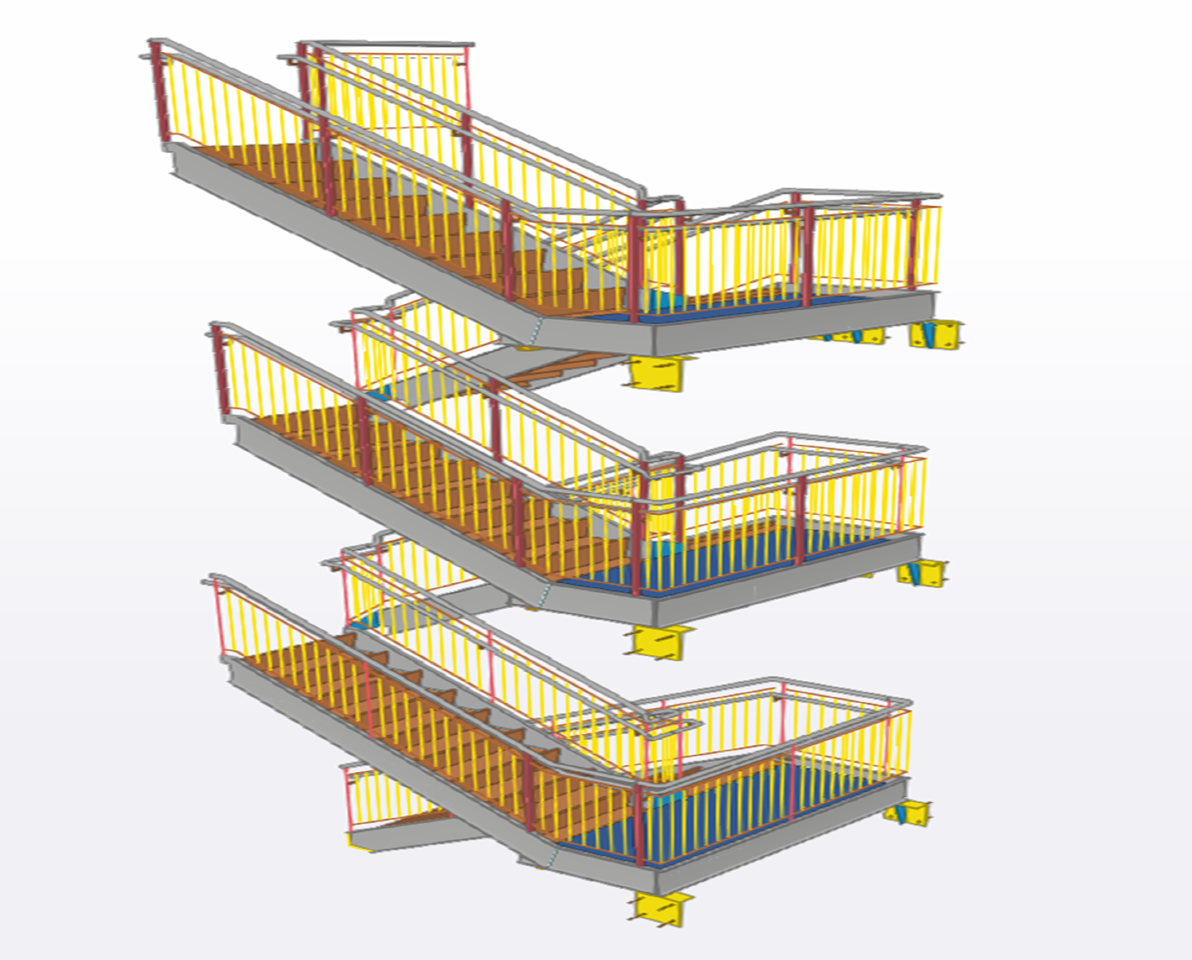

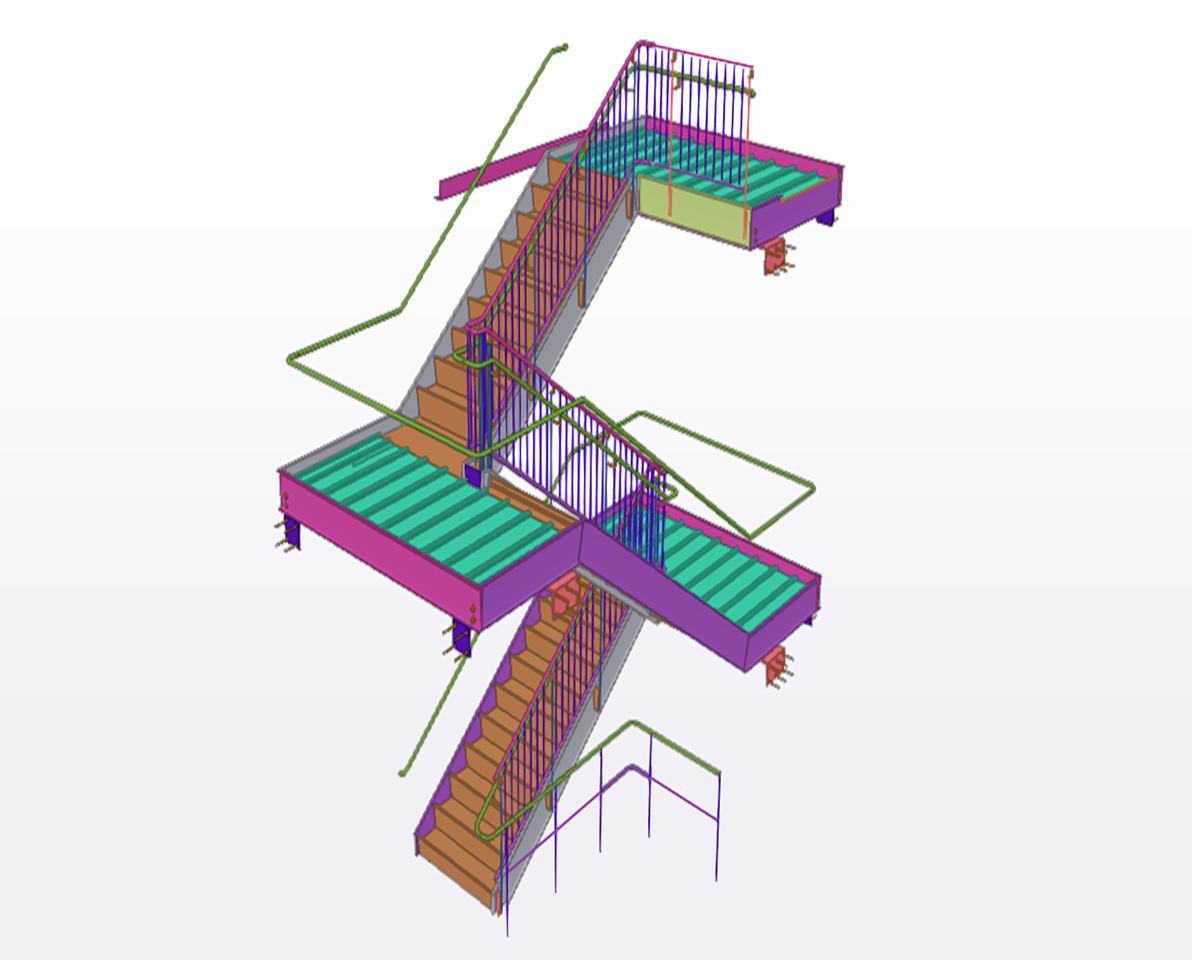

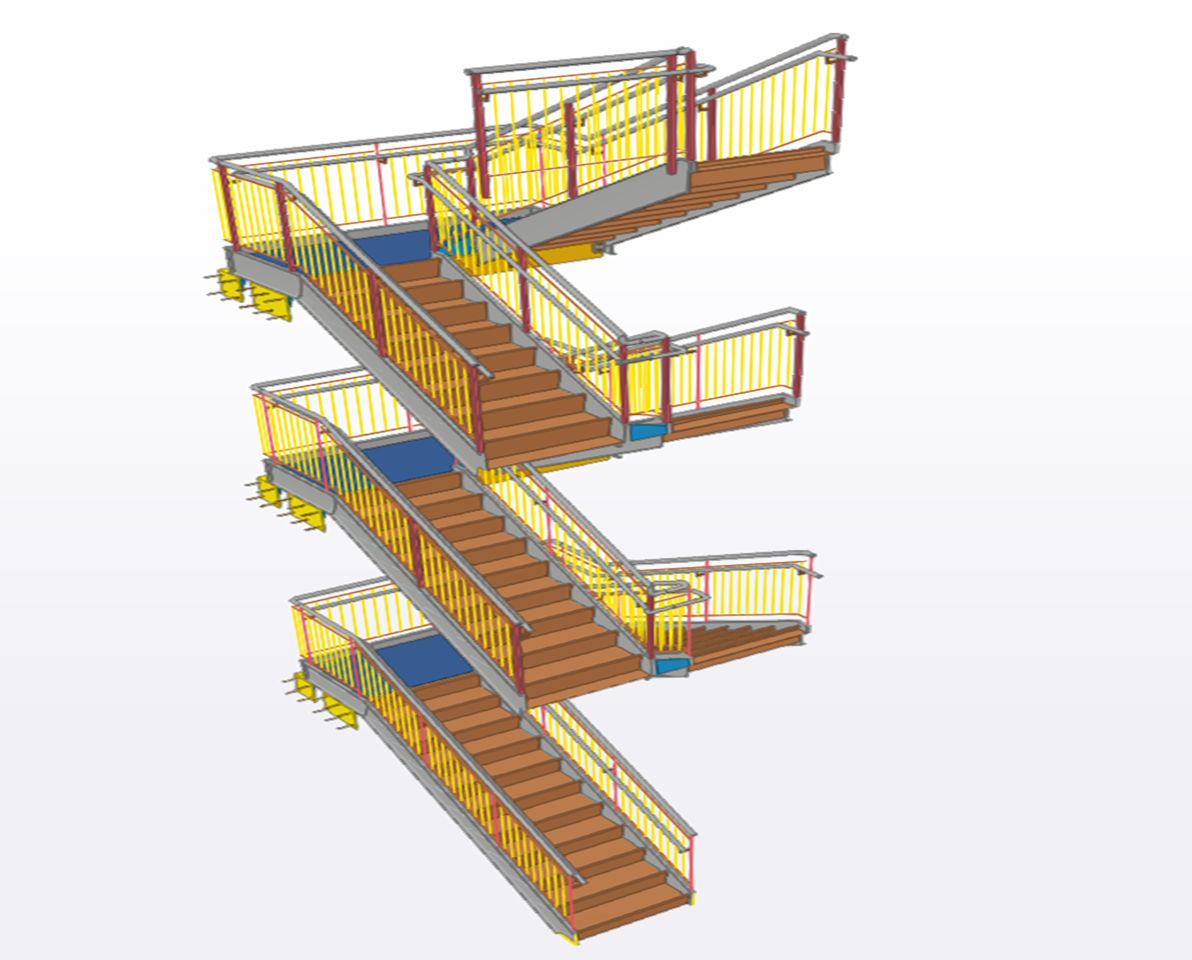

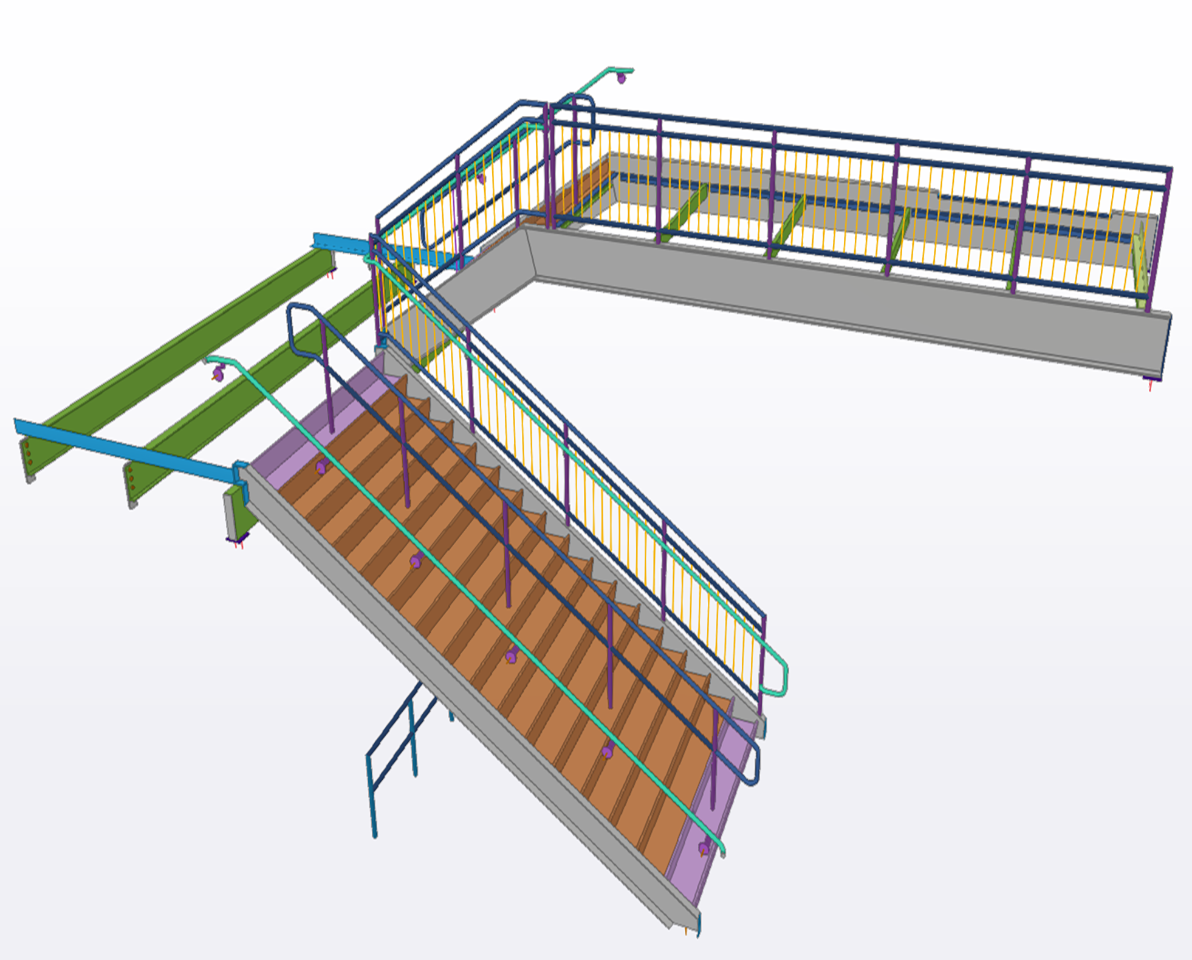

Staircases & Handrails
Detailed drawings for stairways, including treads, risers, and connections, along with handrails and guardrails tailored to safety codes and design requirements.
Ladders & Safety Cages
Fabrication-ready detailing for ladders, rungs, and safety cages, ensuring compliance with OSHA and project specifications.
Platforms & Walkways
Complete detailing of access platforms, catwalks, and maintenance walkways with accurate material lists and connections.
Canopies & Awnings
Structural detailing for architectural steel canopies and awnings that enhance both function and aesthetics.
Gates, Fences & Gratings
Custom detailing for decorative and industrial gates, fences, floor gratings, and other utility steel elements.
Miscellaneous Architectural Elements
Including bollards, embeds, brackets, sign supports, and other project-specific steel components.

Why Choose Us?

✔️ Accuracy and Compliance – We adhere to international standards like AISC, NISD, and OSHA.
✔️ Efficiency – Optimized drawings to minimize fabrication and erection time.
✔️ Customization – Tailored solutions to meet unique project requirements.
✔️ 3D Modeling Support – Clash-free detailing with advanced software tools.
